        Purpose




        Climate change is the central issue of our time.
        It is a "wicked", multifaceted problem that has the potential to cause
        the collapse of our civilization and possibility result in the extinction of our
        species.  This "Expectation Series"
        is an attempt to outline what we might expect from some of the major "climate
        factors", thereby providing a resource that can be used to "jog" one's memory of
        what to expect and why.  Most of the
        "articles" are simply "bullet points" with detailed references, allowing the
        reader to quickly understand the basis of an "expectation".  The articles should be viewed as a
        "work in process" as I will be revising them frequently as new material becomes
        available.  Comments, suggestions,
        and corrections can be forwarded to me at bruce@chesdata.com.





        Background








        Many recent articles suggest (and I concur) that the IPCC (and other scientific
        organizations) are very conservative in their estimates for the expected
        temperature increase as the models used for their reports assume minimal natural
        emissions and likely underestimate climate sensitivity.  But since most environmental  organizations use the IPCC CO2 budget
        estimates for temperature increases of 1.5 °C and 2.0°C, the "general belief" is
        that we can "solve" climate change without sacrificing much by simply making
        slight changes to our lifestyles and by giving the politicians the "political
        will" to force our civilization to replace the consumption of fossil fuels with
        renewable energy in the next 30-60 years.  Unfortunately
        the required changes are both more significant and costlier than most people
        realize.




        Our climate strategy for the next 20-30 years will likely remain pretty much the
        same as it is today - work hard to mitigate greenhouse gas emissions where it
        makes economic sense and fund R&D to reduce carbon dioxide removal costs.  In other words, let the "free market"
        determine how much CO2 is emitted or captured, with governments providing some
        incentives to reduce emissions (e.g., tax credits for renewables and carbon
        capture, renewable portfolio standards, carbon taxes, carbon caps, electric
        vehicle mandates, CAFE standards, power plant emission regulations, etc.).
          The problem is that it is likely too
        late to mitigate our way out of catastrophic climate change because (1) climate
        sensitivity is likely much higher than the models expect; (2) cumulative natural
        emissions will likely be in the 100-200 GTC range by 2100, and (3) non-CO2
        radiative forcing will be very difficult to reduce to the levels expected by the
        models.  As a result, a "mitigation
        only" approach would likely result in a temperature increase of 3 °C to 5 °C by
        2100.




        In order to meet the 2015 Paris Climate Agreement (which aims to keep "the
        global average temperature increase to well below 2 °C above pre-industrial
        levels and to pursue efforts to limit the temperature increase to 1.5 °C above
        pre-industrial levels") significant quantities of CO2 will almost certainly need
        to be removed  from the atmosphere by
        either mechanical or biological means.   And
        by anticipating that future generations will pay for CO2 removal, it then
        becomes possible to have emission scenarios that result in any temperature
        increase from 1°C to 2°C by "simply" removing the required amount of CO2.  But many people see CO2 removal as a
        "moral hazard":  by anticipating CO2
        removal in the future we will skimp on mitigation now, and if CO2 removal does
        not work as planned (i.e., is too expensive) the result will be catastrophic
        climate change.  Unfortunately, we are at
        the point where we must accept the moral hazard and plan for significant CO2
        removal.  But a major stumbling block
        to CO2 removal is its cost - although we are rich enough to be able to
        afford the necessary costs (likely several trillion dollars per year in the
        next 10-30 years) it is unlikely that politicians will be willing to raise taxes
        enough to actually pay for the
        necessary costs.  And a possible
        "Catch 22" is that if carbon dioxide removal
        is to be affordable, costs might need to come down so much that it would
        make economic sense to emit CO2 now and remove CO2  later.
        And another problem is determining who pays to remove the CO2:  1) the U.S. (with 4% of world's
        population) is responsible for 25% of cumulative CO2 emissions;  2) India and China (with 35% of
        world's population) are responsible for about 8% of cumulative CO2 emissions; 3)
        India and China would like to emulate our life style;  4) how can we deny them what we have
        achieved?  5) shouldn't the U.S.  (and other OECD countries) pay most
        of the CO2 removal costs?




        Expectations




        By 2030 the temperature increase is apt to be about 1.5°C and there might be no
        sea ice in the Arctic in September.  Some climate scientists are worried
        that this might cause a really serious release of methane from the sub-sea
        methyl hydrates in parts of the Arctic, resulting in a temperatures to spike
         of 1-3°C in a few years.
         My guess is that, even without a "methane
        burp", between 2030 and 2040 the changes in the Arctic will drive changes to
        weather patterns that could easily disrupt food production (and a "methane burp"
        would simply make that happen sooner).  This
        might cause famines in many parts of the world, disrupt global trade, and
        perhaps cause multiple advanced societies to collapse.  And this likely a
        question  of "When" and not "If".  In other words, we are very likely
        already headed towards a "hothouse" Earth because we are not willing to make the
        sacrifices needed to stop global warming.
        So the only way to avoid a "hothouse Earth" is to employ some sort of
        solar radiation management in the coming decades.




        The " Expectation Series" currently contains the following articles:





            |

                    Climate Factors the Determine the
                    Expected Temperature Increase
             |


            |

                    1
             |


                    Expectation
                    Questions
             |


                    What are the main questions that need to be answered to determine if world
                    governments will likely be willing to fund the removal of CO2 from the
                    atmosphere  at the scale needed to
                    avoid serious climate disruption
             |


            |

                    2
             |


                    Current Situation
             |


                    Based on likely anthropogenic GHG emissions and climate feedbacks, we are almost
                    certainly headed towards a "hothouse Earth" unless many gigatons of carbon are
                    removed annually from the atmosphere
             |


            |

                    3
             |


                    Anthropogenic CO2 Emissions
             |

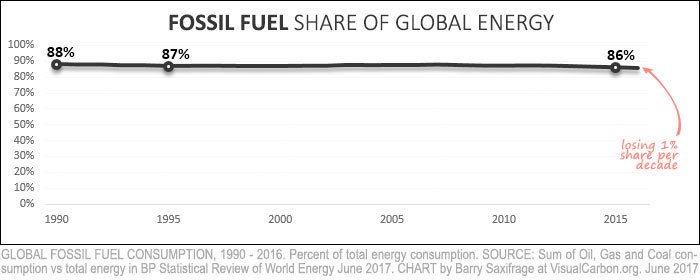

                    Global CO2 emissions from fossil fuels will likely remain the same through 2050
                    at about 10 GTC/year and atmospheric CO2 could reach 480 PPM by 2050
             |


            |

                    4
             |


                    Natural Emissions
             |


                    Cumulative emissions through 2100 from natural feedbacks will likely be in the
                    range of 120-200 GTC (not including methane from methyl hydrates).
             |


            |

                    5
             |


                    Methane
             |


                    "Global warming triggered by the massive release of carbon dioxide [from
                    permafrost] may be catastrophic, but the release of methane from [methyl
                    ]hydrate may be apocalyptic".
             |


            |

                    6
             |


                    Global Warming Feedbacks
             |


                    The reaction of clouds to a warming atmosphere has been one of the major sources
                    of uncertainty in estimating exactly how much the world will heat up from the
                    accumulation of greenhouse gases
             |


            |

                    7
             |


                    CO2 Uptake
             |


                    If we can limit net emissions to about 250 GTC, the ocean and biosphere will
                    absorb all of the emitted CO2 and atmospheric CO2 will eventually return to the
                    current level
             |


            |

                    8
             |


                    Climate Sensitivity
             |


                    Recently it has been demonstrated that the models that best capture current
                    conditions have a mean value of 3.7°C compared to 3.1°C by the raw model
                    projections
             |


            |

                    Temperature Increase
             |


            |

                    9
             |


                    Temperature Increase
             |

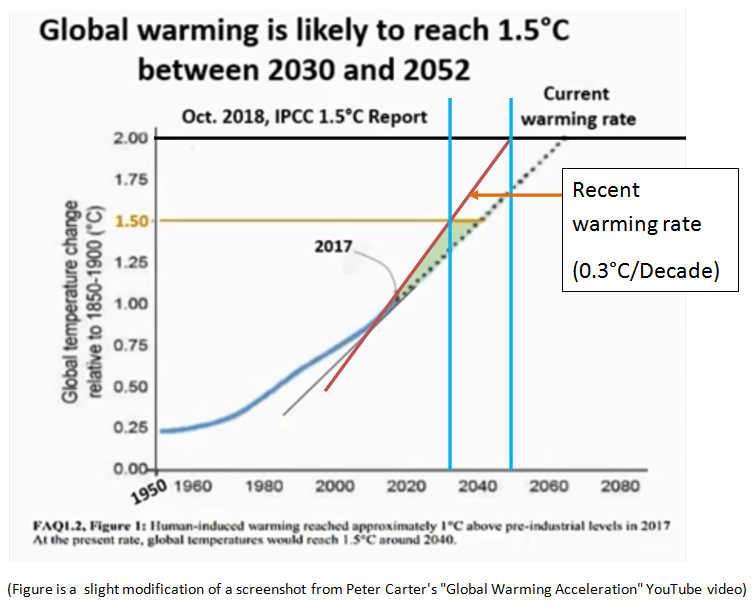

                    Likely increases: 1.5°C by 2030; 2.0°C by 2050; 4-5°C by 2100
             |


            |

                    10
             |


                    Equilibrium Temperature Based on CO2 Emissions
             |

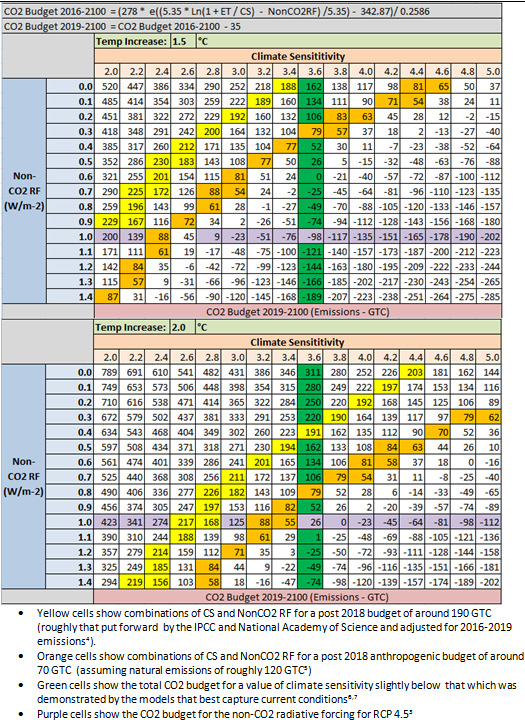

                    Tables were created to show the expected equilibrium temperature for various
                    combinations of values for CO2 emissions, non-CO2 radiative forcing in2100, and
                    climate sensitivity.
             |


            |

                    CO2 Emission Budgets
             |


            |

                    11
             |


                    CO2
                    Emissions Budget
             |


                    There are several problems with presenting the IPCC's carbon budget in terms of
                    "there is an XX% chance of meeting the NN° C temperature target if total
                    emissions are less than MM GTC between now and 2100".
             |


            |

                    12
             |



                    CO2 Emissions Budget - Alternative Analysis
             |


                    We essentially have exhausted the CO2 budget for
                    1.5°C and 2.0°C
             |


            |

                    Carbon Dioxide Removal Costs
             |


            |

                    13
             |


                    CDR Costs
             |


                    "Even if climate geoengineering techniques [,which includes carbon dioxide
                    removal,]were ever actively pursued, and eventually worked as envisioned on
                    global scales, they would very unlikely be implementable prior to the second
                    half of the century".
             |


            |

                    14
             |


                    CDR Costs
                    - U.S.
             |


                    Using Hansen's $450/tC as a rough estimate , we, in the U.S., should be spending
                    about $1,900 per person per year (about $700 billion total) for the next 30-50
                    years to capture and sequester carbon
             |


            |

                    Other Consequences of Global Warming and
                    CO2 Emissions
             |


            |

                    15
             |



                    Climate Change
             |


                    It is quite possible that global warming will cause significant shifts in the
                    Earth's entire atmospheric circulation patterns, which might lead to massive
                    crop failures in the US.
             |


            |

                    16
             |


                    Sea
                    Level Rise
             |


                     We could have between one and two meters
                    of sea level rise by 2100
             |


            |

                    17
             |



                    Ocean Acidification
             |


                    Oceans could lose up to $1 trillion in annual value by 2100 due to acidification
             |






        Additional background material:


        The Race of Our Lives, Revisited


        What Lies Beneath


        Job One for
        Humanity



        Keeping track of activity: the Climate Progress Dashboard



        |
